TAG - Tow Ball Mount - 220mm Long, 135° Face, 40mm Square Hitch
TAG - Tow Ball Mount - 220mm Long, 135° Face, 40mm Square Hitch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
TAG - Tow Ball Mount - 220mm Long, 135° Face, 40mm Square Hitch
Description
Description

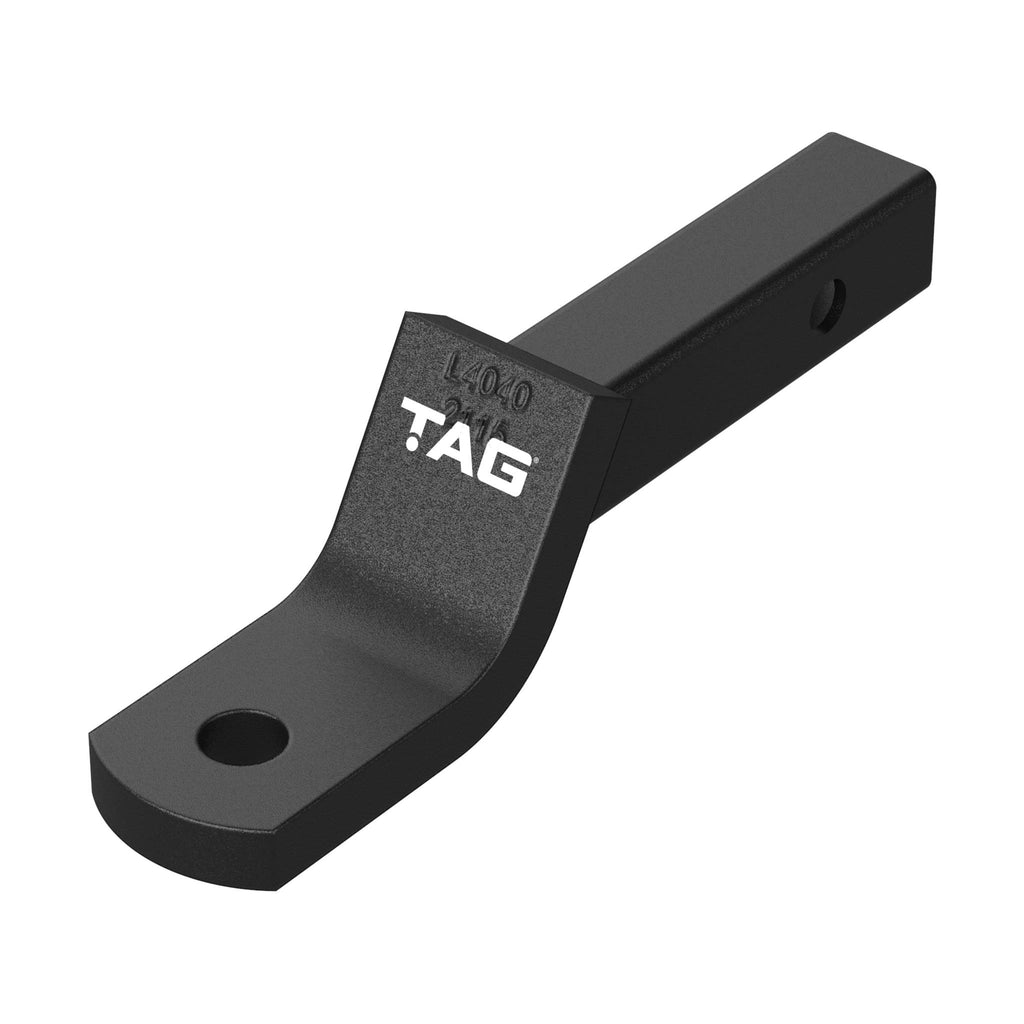

TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Towbar, fitting a 40mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

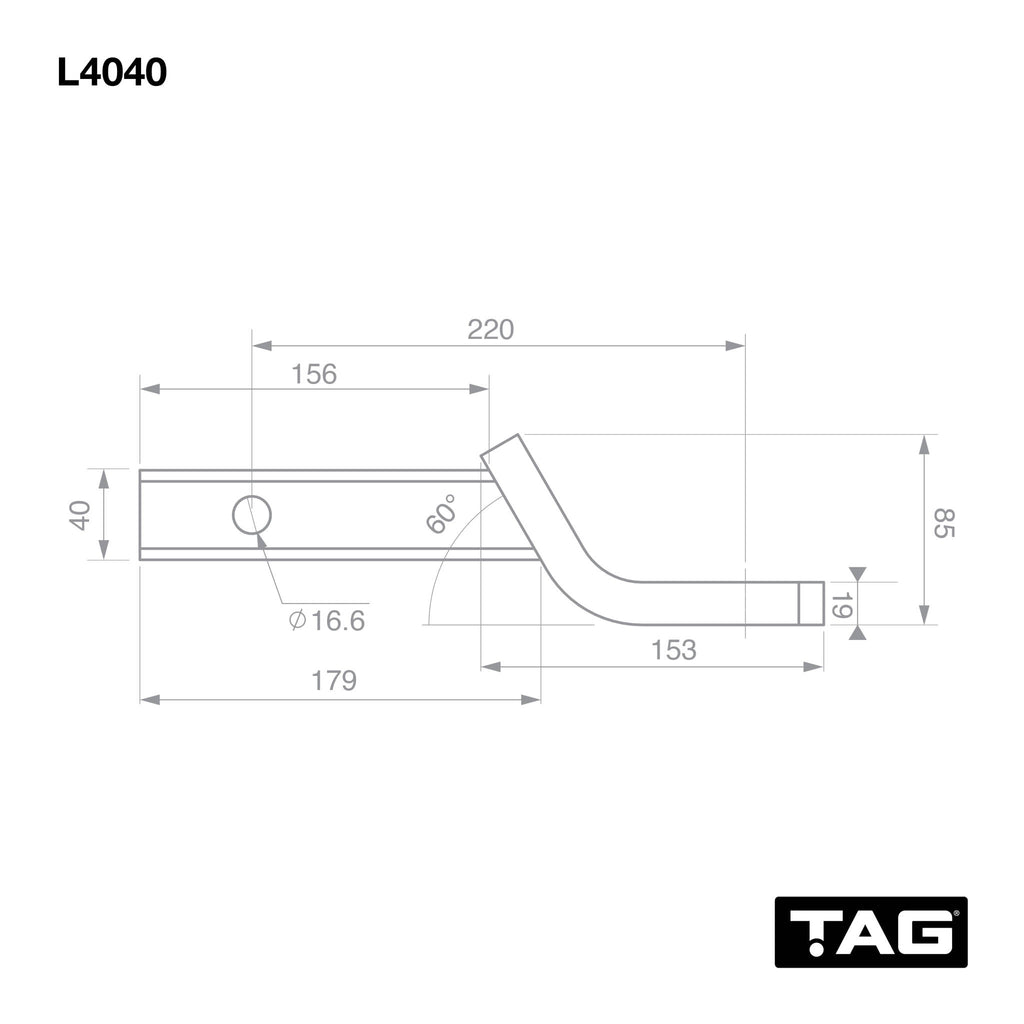

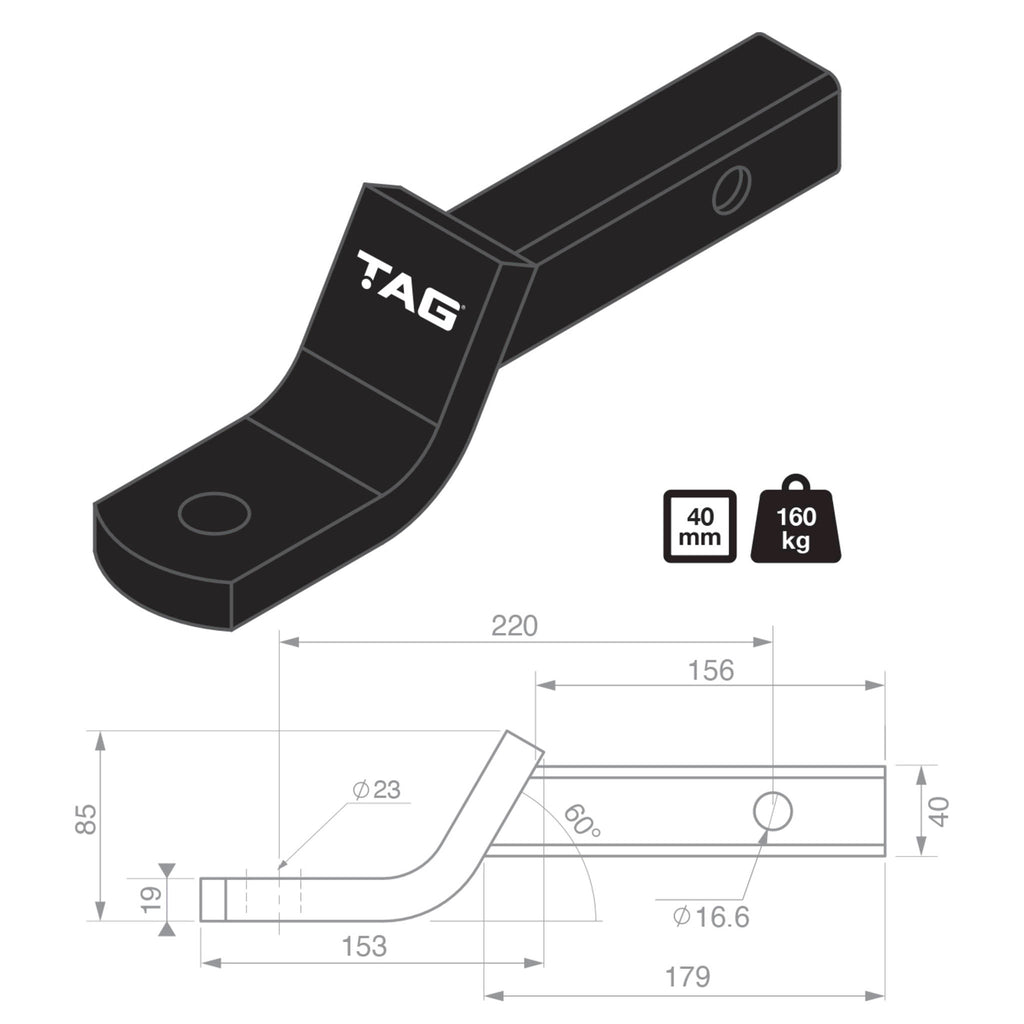

- 220mm Long (Hitch Pin Hole to Tow Ball Hole)
- 135° Tongue Face
- Drop: 0mm
- Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
- 1600kg Gross Trailer Weight
- 160kg Ball Weight
- Durable Powder-Coated Finish
- ADR 62/02 Compliant
- TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
Technical Specs
- Tow Ball Mount Class: Medium Duty (Class 3)
- Gross Trailer Weight: 1600
- Ball Weight [kg]: 160
- Hitch Type: 40mm Square
- Drop: 0mm
- Length (Pin To Ball): 220mm
- Tongue Face: 135°
- Coating: Powder Coated
